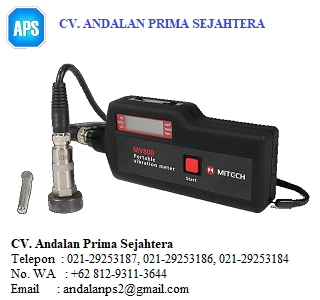

Mitech MV800 Portable Vibration Meter
Brand：Mitech
Model：MV800
Measuring range：Measurement range(displacement): 0.001~1.999mm(Peak to peak:
Resolution Accuracy：Indication error: ±2
Communication storage：
Working time：30 hours
Main unit weight：
Dimensions：
Package dimensions：20.7*12.3*6cm
Total weight：490.9g
Mitech MV800
MITECH portable vibration meter MV800 is made up of piezoelectric transducer and digital display circuit. It is mainly used to measure vibration acceleration, speed and displacement of various rotary machine. This product has the advantages of large measurement, wide variety, intuitively demonstration, small size, light weight etc. It is widely used in measurement on site or at height and can reduce the working strength, improve the working efficiency.
MV800 is mainly used in monitoring the vibration of machines, such as industries of manufacturing, electric, metallurgy, vehicle etc, specific on the quick check and preventive check of bearing, gear, motor, fan lathe etc.
MV800 combines the quartz crystal and PZT piezoelectric effect together. When the quartz crystal or PZT is under strength, the surface generates charger, the vibration was changed into electrical signal by acceleration transducer. After processing and analyzing, the acceleration, speed and displacement are shown out in the liquid screen.
Working Conditions
Operation temperature: 0~50℃
Memory temperature: -30℃~+70℃
Relative humidity: below 90%RH
Technical Product
| Battery life | continuous use for 30 hours |
| Power model | 6F22 9v packed cells |
| Dimensions | 185mm*68mm*30mm |
| Output signal | AC 2v(peak value, full measurement above 10k) |
| Sampling period | 1s |
| Display mode | 3-digit Semi liquid crystal display |
| Frequency range | 10Hz~10KHz |
| Indication error | ±2 |
| Measurement accuracy | ±5% measured value |
| Measurement range(acceleration) | 0.1~199.9m/s2(peak value: valid value*√2) |
| Measurement range(speed) | 0.1~19939mm/s (valid value) |
| Measurement range(displacement) | 0.001~1.999mm(Peak to peak: valid value*2√2) |
| Vibration pickup | separated charge-amplifier and build-in acceleration transducer |
‘
‘
‘
