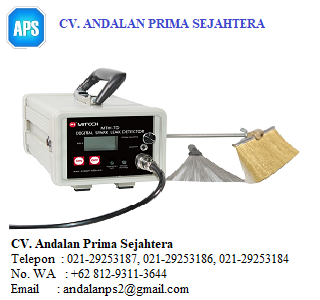

Mitech MTH-7D DC Spark Leak Detector
Brand：Mitech
Model：MTH-7D
Measuring range：0.05~10mm
Resolution Accuracy：
Communication storage：
Working time：10h
Main unit weight：1.7kg
Dimensions：220×130×88mm
Package dimensions：50*40*20cm
Total weight：6kg
Mitech MTH-7D digital DC spark leak detector，based on the principle of high pressure pulse conducting through anti-corrosion layer，can quickly detect the crack leakage of the coating. While using, if there is pinhole、bubble and crackle in the layer ,the instrument will make a bright spark and accompanied by a warning tone.The operation is extremely simple，and It’s powered by the unique design relies on the large capacity battery packs that no longer rely on 220V power supply.It is suitable for engineering site operations. The performance of the product is stable and reliable, thus widely used in Oil and Gas pipelines、Cable、Enamel、Metal Casting Pipe、Hull and other metal surface corrosion insulation construction quality and aging corrosion monitoring，it is also the necessary testing equipment in chemical, oil, rubber industry.
Can detect the glass fence outside the wall, the valve pipe, glass pipe, epoxy coal asphalt, rubber lining and other cracks in the crack quickly.
A certain pulse voltage is applied by applying a Anti-corrosive coating to the conductor, if the coating is too thin or there is some metal leakage body、leaky pinhole，pulse high voltage, it will break through the air gap to discharge spark，at the same time ,the alarm will receive the pulse signal，and send out sound and light alarm，and then achieve the purpose of coating detection.
Instrument Features
Applicable to different thickness of the glass lining, glass steel, epoxy coal tar pitch and rubber lining and other coating quality testing；
Battery powered，applicable to field engineering site operation；
LCD display，can directly display the output of high pressure（KV）；
The output voltage of the pulse voltage can be adjusted directly by turning the knob，easy and convenient to meet the needs of different anti-corrosion testing；
Two different probes applied to different detection environment；
Low power consumption，small volume，light weight，simple operation，easy to use.
Technical Product
| Host size | 220×130×88mm |
| C power supply | 12V |
| Output voltage | 0.2kv~30kv（±5%） |
| Applicable scope | 0.05~10mm |
‘
‘
‘
