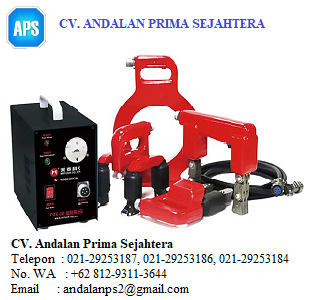

Mitech CDX-Ⅲ Magnetic Flaw Detector
Mitech CDX-Ⅲ Magnetic Flaw Detector
Brand：Mitech
Model：CDX-III
Measuring range：≥45N(no less than 5kg)
Resolution Accuracy：clearly show the artificial notch of type A 30/100 standard
Communication storage：
Working time：continuous working
Main unit weight：5KG
Dimensions：
Package dimensions：42*33.5*41cm
Total weight：14kg
MITECH CDX-Ⅲ multifunctional magnetic particle flaw detector is the self-designed magnetic participle flaw detector of MITECH CO.,LTD. With small size, light weight, easy operation, multifunction in one unit. The detector can equip A, D, E O four types of probes to realize the functions of magnetic clamp detection, electromagnetic yoke detection, cross magnetic yoke detection, ring detection. It is the necessary detector to do quality control, safety check, life evaluation in the fields of petrol, chemicals, metallurgy, shipbuilding, aviation, railway etc
It is widely used in the industry of aircraft manufacturing, boiler and pressure vessel, electric, oil field, shipbuilding, turbine and combustion engine parts, mine, machinery, standard parts, oil pump, vehicle parts, bridging, chemical, railway, large mechanical components, steel structure equipment etc.
Magnetizing, put the workpiece in the magnetic field, connect electric to make it magnetized, if there are flaws(crack,slag), magnetic-curve will leakage on the flaws, when put magnetic participle on the workpiece, the magnetic field will catch the participle and pile up
Technical Product
| Complex sensitivity | clearly show the artificial notch of type A 30/100 standard specimen |
| Lifting | ≥45N(no less than 5kg) |
| Working conditions | magnetizing time≤3s, clearance time≥5s |
| Weight | about 7.0KG |
| Probe temperature-rise | ≤60℃ |
| Flaw detection speed | ≥6m/min |
| Power output | AC36V*2, 15A, can equip A, D, E, O four probes |
| Power input | AC220V, ±10%, 50HZ,5A |
‘
‘
‘
