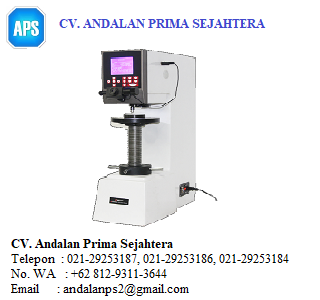

Mitech MHBS-3000 Digital Display Brinell Hardness Tester
Mitech MHBS-3000 Hardness Tester
Brand：Mitech
Model：MHBS-3000
Measuring range：8~650HBW
Resolution Accuracy：
Communication storage：
Working time：
Main unit weight：130kg
Dimensions：786*565*245mm
Package dimensions：105*78*47cm
Total weight：150kg
MITECH MHBS-3000 Digital Display Brinell Hardness Tester, based on the mechanical principle of hard alloy indenter pressing into the sample surface to produce indentation, realizing the material hardness measurement by measuring the diameter of the indentation.It is novel and high reliable with accurately measurement. With LED display, simple operation, it can visually display the test results to meet the hardness testing requirement for the quality control and qualified assessment of the workpiece sample. It is widely used in metal processing and manufacturing, various metal material’s failure analysis and other fields like colleges and research institutions It’s to improve the work efficiency, product qualification rate, saving production costs necessary professional precision testing equipment.
Hardness is not a simple physical quantity, but a reflection of the material elasticity, plasticity, strength and toughness .and hardness test is the most simple mechanical testing method to determine the metal material performance. Also one of the important means to judge the products quality.
Brinell hardness test: Test force(F) is on the steel ball with certain diameter(D) , pressed on sample surface. After a period of time, cancel the force. The indentation diameter is get by measuring with micrometer ocular,thus to calculate the average pressure(N/mm²).
Technical Product
| The power series | 612.5N（62.5kgf）、980N（100kgf）、1225N（125kgf）、1837.5N（187.5kgf）、 2450N（250kgf）、4900N（500kgf）、7350N（750k |
| Measuring range | 8 – 650 HBW |
| Testing Force Application Mode | Automatic (loading, holding, unloading) |
| Indenter objective lens conversion mode | manual operation |
| display usage | LCD liquid crystal display |
| Microocular magnification | 20X |
| Test force holding time | 0~60s |
| Minimum division | 0.005mm |
| Max sample height | 225mm |
| Max sample width | 270mm |
| Max distance from head to body | 135mm |
| Voltage | AC 220V/50Hz |
| Size | 786*565*245mm |
| Total Weight | 130kg |
‘
‘
‘
