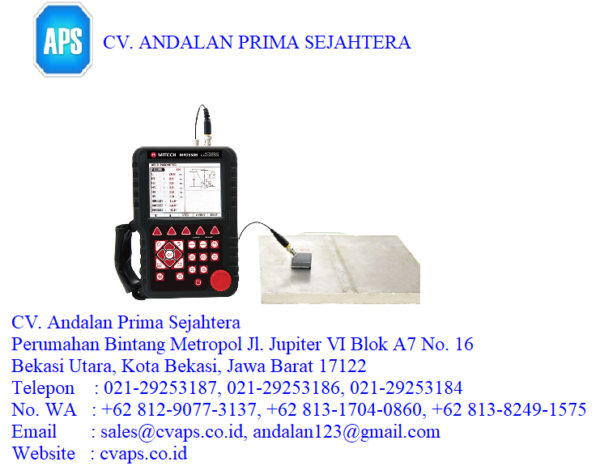

Mitech MFD350B Ultrasonic Flaw Detector
Brand：Mitech
Model：MFD350B
Measuring range：0 to 6000 mm, at steel velocity
Resolution Accuracy：Horizontal: +/-0.2% FSW, Vertical: 0.25% FSH, Amplifier Accu
Communication storage：USB2.0;100 groups of flaw detecting parameters channels;1000
Working time：More than 8 hours.
Main unit weight：1.45KG
Dimensions：263*170*61mm
Package dimensions：44.5*37*14cm
Total weight：5.5kg
Based on ultrasonic principle, digital ultrasonic flaw detector MFD350B with 320*240 TFT LCD, it can test, orient, evaluate and diagnose various flaws such as crack, lard, air hole in workpiece’s interior swiftly and accurately without any destruction. It can be used in Laboratory as well as in engineering filed. With range of 0-6000mm, it can meet the requirement for general defect inspection in manufacturing industry, metallurgical industry, metal processing industry, chemical industry and so on. Low power design with large capacity and high performance lithium battery module, it can be long standby for months. High quality with low price, it is the first choice for the practical economic model for ultrasonic testing equipment.
Technical Product
| Display Resolution | (320×240 pixels) multi-color TFT LCD |
| Blind Area | 5MM |
| Flaw Sizing | Automatic flaw sizing using AVG/AVG or DAC, speeds reporting of defect acceptance or rejection. |
| Weld Figure Feature | Weld Figure feature can be enabled when detecting the weld parts using angle transducer. |
| Auto-Calibration | Automated calibration of transducer zero offset and/or material velocity |
| Memory | be able to store, recall the A-Scan patterns and instrument settings |
| Flaw Locating | Live display Sound-path, Projection (surface distance), Depth, Amplitude |
| Defect Quantification | directly display the result with db unit |
| Defect characterization | calculate the equivalent size of the flaw easily and quickly to facilitate the judgment of artificia |
| Curved Surface Correction | used to measure the surface distance and depth of defect on a curved surface |
| DAC/AVG | Y |
| AWS D1.1 | one of the AWS（American Welding Society） standa |
| Crack Height Measuring | measure and display the height of a crack found inside the workpiece |
| Magnify Gate | spreading of the gate range over the entire screen width |
| Video Recording | more than 10 minutes |
| A Scan Freeze | Display freeze holds waveform and sound path data |
| Coded Echo Color | locate the flaw position |
| B-Scan | display a graphical cross-section of the workpiece |
| Power-Saving Method | low power consumption |
| Protection Level | IP54 |
| Communication Interface | High Speed USB2.0 port |
| DataPro Software | Y |
| Working Language | freely switch between Chinese and English |
| Total Weight | 6.0KG |
| Measuring Range | (0 ~ 6000) mm at steel velocity |
| Bandwidth | 0.5 to 10MHz automatic matching according to the probe frequency |
| Material Velocity | (1000~ 9999) m / s |
| Dynamic Range | ≥ 36dB |
| Vertical Linear Deviation | ≤ 3.0% |
| Horizontal Linear Deviation | ≤ 0.2% |
| Resolution | > 40dB (5P14) |
| Sensitivity Leavings | >60dB (flat-bottomed deep hole 200mmФ2) |
| Rejection | (0 to 80)% Linear without affecting the linearity and gain |
| Noise Level | ≤ 10% |
| Probe Type | straight beam probe, angle beam probe, dual element probe, through-transmit probe |
| Gates | Wave-getting Gate, Wave-losing Gate, Single Gate Reading, Dual Gate |
| Alarm | Beep Alarm and LED light Alarm |
| Power Supply | DC 9V |
| Working Time | ＞8 hours |
| Overall Dimensions | 263 × 170 × 61(mm) |
| Operating Temperature | (-10 ~ 50) ℃ |
| Relative Humidity | (20 ~ 95)% RH |
