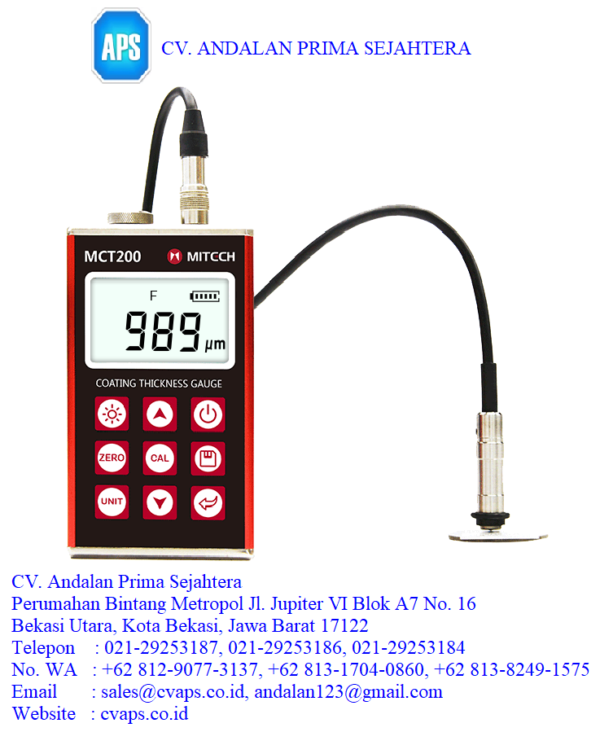

Mitech MCT200 Digital Coating Thickness Gauge
Mitech MCT200 Thickness Gauge
MCT200 Coating Thickness Gauge is designed for non-destructive, fast and precise coating thickness measurement and also can measure the film thickness. It is widely used in manufacturing,metal processing industry, chemical industry.commodities inspection and other testing areas. Measuring range from 0 to 10 mm, can meet the different industries in view of the workpiece surface coating thickness testing requirements. It is the necessary professional precision instrument to improve the production efficiency and the qualified rate, saving the cost of production.
Working temperature: -10℃～＋50℃.
Storage temperature: -30℃～＋60℃.
Relative humidity: ≤90％.
The surrounding environment should avoid of vibration, strong magnetic field, corrosive medium and heavy dust.
Technical Product
| Measuring range | (0～1250) μm, depends on probes. maximum 10mm for the probe F10. |
| Resolution | 0.1μm |
| Accuracy | ±(3%H+1) μm; |
| Display | 4 digital LCD with EL backlight |
| Storage | Memory for up to 20 files (up to 50 values for each file) of stored values. |
| Unit | Metric (μm)、Imperial (mil) |
| Working voltage | Two “AA” size, 1.5 Volt alkaline batteries. |
| Working hous | 200 hours typical operating time (EL backlight off). |
| Communication port | USB1.1 |
| Dimensions | 125mm×67mm×31 mm |
| Net weight | 340g |
| Working temperature | -10℃～＋50℃ |
| Relative humidity | ≤90％ |
