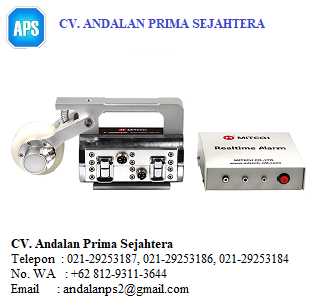

Mitech MRT10-S Wire Rope Computer Detector
Mitech MRT10-S Wire Rope Computer Detector
Brand：Mitech
Model：MRT10-S
Measuring range：Φ1.5—300mm (Ranges differ according to different sensors)
Resolution Accuracy：±0.2％
Communication storage：RS232
Working time：>4h
Main unit weight：< 10kg
Dimensions：
Package dimensions：50*50*20cm
Total weight：10-12kg
Mitech MRT10-S wire rope flaw detector is the latest NDT product developed by Mitech CO.,LTD. Based on the principle of magnetic leakage, it can real-time detect the internal and external wire rope defects such as broken wire, corrosion, wear and calculate the changes of quantitative values on metallic cross-sectional area then generate diagnosis report in accordance with the current standards and procedures. The hardware part adopts international advanced MRT magnetic sensor and independent data collecting module, can directly save data in computer through RS232 or USB main line, The principle of software part is the wavelet transformation, achieves the functions such as data acquisition, control, analysis, display, storage and so on. By unique dynamic target tracking, it can observe data signal and change situation continuously and dynamically, real time display results, alarm and automatic evaluation. The equipment is easy to carry and operate, with high precision, good repeatability, can locate damage accurately. It is widely used in all kinds of industries of hoisting machinery, coal mine hoist, the oil field mining machine, elevator, cableway, port machinery, cable bridge, mine, oil wells, wharf, shipbuilding, war industry, water conservancy, electric power, railway, construction and other industries related with testing broken wires on wire rope and the wear.
Technical Product
| wire rope diameter range | Φ1.5—300 mm （with different sensors) |
| Relative speed of sensor and wirerope | 0.0—6.0 m/s best 0.3-1.5m/s |
| Allowable clearance of sensor and wire rope | 2—6 mm， Allowable clearance：0—15mm |
| Broken wire defect | （LF）test ability |
| Qualitative | The accuracy rate of certain broken wire 99% |
| Quantitative | one misjudge in certain broken wire |
| The accuracy rate of 100 times tests | ≥92% |
| Quantitative change rate of metal section area | （LMA） |
| Detection sensitivity repeatability error | ±0.055% |
| Allowable accuracy error | ±0.2％ |
| Location test | error±0.2% |
| Power | Computer battery 5V |
| Sensor weight | < 10kg |
| Environment temperature | -10℃~40℃ air pressure：86~106Kpa r≤85% |
‘
‘
‘
