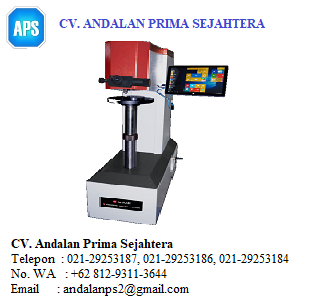

Mitech MHBS-3000-XYZ Automatic Brinell Hardness Tester
Mitech MHBS-3000-XYZ Brinell Hardness Tester
Brand：Mitech
Model：MHBS-3000-XYZ
Measuring range：8 – 650 HBW
Resolution Accuracy：
Communication storage：
Working time：
Main unit weight：
Dimensions：760*320*1050mm
Package dimensions：84*40*120cm
Total weight：230kg
Mitech MHBS-3000-XYZ Automatic Brinell Hardness Tester, based on the mechanical principle of hard alloy indenter pressing into the sample surface to produce indentation, realizing the material hardness measurement by measuring the diameter of the indentation, The use of photoelectric sensor system to high magnification optical measurement, equipped with automatic turret device, high sensitivity touch screen operation interface, can achieve automatic loading and unloading of electronic, automatic indentation marks, microscopic auto focus measurement indentation diameter, GB / ASTM hardness automatic conversion, automatic test report and other functions, easy to operate, high detection efficiency. It can meet the hardness testing requirement for the quality control and qualified assessment of the workpiece sample. It is widely used in metal processing and manufacturing, various metal material’s failure analysis and other fields like colleges and research institutions. It’s to improve the work efficiency, product qualification rate, saving production costs necessary professional precision testing equipment.
Working Principle
Hardness is not a simple physical quantity, but a reflection of the material elasticity, plasticity, strength and toughness .and hardness test is the most simple mechanical testing method to determine the metal material performance. Also one of the important means to judge the products quality.
Brinell hardness test: Test force(F) is on the steel ball with certain diameter(D) , pressed on sample surface. After a period of time, cancel the force. The indentation diameter is get by measuring with micrometer ocular,thus to calculate the average pressure(N/mm²).
Technical Product
| The power series | 612.5N（62.5kgf）、980N（100kgf）、1225N（125kgf）、1837.5N（187.5kgf）、 2450N（250kgf）、4900N（500kgf）、7350N（750k |
| Test force accuracy | 0.1% higher than the average Brinell hardness of 1% (1000Kgf above) |
| Measuring range | 8 – 650 HBW |
| Conversion scale | GB / automatic |
| Brinell scale | HBW2.5/62.5、HBW2.5/187.5、HBW5/125、HBW5/250、 HBW5/750、HBW10/100、HBW10/1500、HBW10/3000、 HBW10/250、HBW1 |
| Testing Force Application Mode | Automatic (loading, holding, unloading) |
| Indenter objective lens conversion mode | Automatic |
| Indentation measurement | Automatic |
| Image focus | Automatic or manual |
| Turret | Automatic or manual |
| Camera (pixel) | 1.3 million / 3 million |
| Indentation measurement | Automatic or manual |
| Hardness value display | Automatic |
| display usage | LCD touch screen |
| Test force holding time | 5~60s |
| Minimum division | 0.001 mm |
| Applicable material maximum height | 400mm |
| Max distance from head to body | 250mm |
| Test report | Automatic |
| Voltage | AC 220V/50Hz |
| Size | 760*320*1050mm |
| Total Weight | 200kg |
‘
‘
‘
