Mitech MFP17-B Fully Automatic Film Processor

Mitech MFP17-B Fully Automatic Film Processor

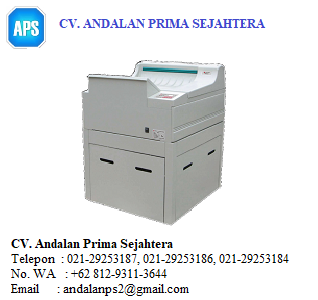

Mitech MFP17-B Film Processor



Brand：Mitech
Model：MFP17-B
Measuring range：
Resolution Accuracy：
Communication storage：
Working time：
Main unit weight：56kg
Dimensions：800mm×580mm×420mm
Package dimensions：89*83*65cm
Total weight：90kg



Mitech MFP17-B fully automatic film processor is the new generation product of Mitech Co.,Ltd. It has super digital display board, the microcomputer control system and dense array type roller group can transfer various size film. The countdown monitoring function makes the circulation work finished in one minute and enter the standby mode automatically. Processing liquid can automatically cycle and replenish to keep the liquid fresh. Professional prototype drying duct system makes both sides of the film dried with no water print. It is widely used for monitoring various pipelines and pressure vessels in the fields of petroleum, chemical, metallurgy, shipbuilding, aviation, aerospace and so on.



Function & application
Aerospace
Military Railway
Shipbuilding Industry
Mining Inspection
Pressure Vessel, Pipeline
Oilfield Power Plant



Film process mainly by developing, fixing, washing and drying. The film needs to be placed in the developer tank that with liquid for a period of time, then in the fixer tank for a period of time. After that, put it in wash tank, then dry it to complete the film process.

The four processes have high requirements for the temperature, time and liquid concentrations in developer and fixer. Film process has four modes, cold, preheating, wash, and self-inspection. Under cold mode, system is on electricity but not work. Under preheating mode ,working area starts to heat to certain temperature without film. When the film enters in, temperature goes up rapidly to wash film. Wash mode means film is under washing. Under self-inspection, it can check whether each component is working normally.



Technical Product

Film Size	Min.60mm, Max.435mm
Film Speed	6~14min (Interval is adjustable in a minute)
Film Qty	12-25 pieces per hour (356×432mm)， 30-120 pieces per hour (80×300mm)
Linear Speed	65~145mm/min
Developer Tank Volume	8.5L
Fixer Tank Volume	8.5L
Washer Tank Volume	8.5L
Developer Temperature	20~40℃(adjustable)
Fixer Temperature	20~40℃(adjustable)
Washer Temperature	5~25℃
Dryer Temperature	20~70℃(adjustable)
Water Consumption	2L/min during processing
Replenishment	Automatic/Manually 50-500ml/m³
Power Source	220V 10A 50Hz
Weight	56kg (Empty), 81.5kg (Filled)
Dimension	800mm×580mm×420mm

‘

‘

‘
