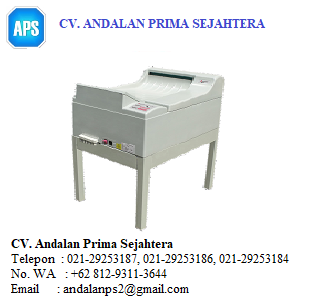

Mitech MFP14-A Fully Automatic Film Processor
Brand：Mitech
Model：MFP14-A
Measuring range：
Resolution Accuracy：
Communication storage：
Working time：
Main unit weight：
Dimensions：800mm×580mm×420mm
Package dimensions：91*75*65cm
Total weight：75kg
Mitech MFP14-A fully automatic film processor is the new generation product of Mitech Co.Ltd. With Super digital display board, the microcomputer control system and dense array type roller group, it can transfer various size film. Gap bridge direction can be adjusted to avoid film stuck. Processing liquid can automatically cycle and replenish to keep the liquids fresh. Professional prototype drying air duct system makes both sides of the film dried with no water print. It is widely used for monitoring various pipelines and pressure vessels in the fields of petroleum, chemical, metallurgy, shipbuilding, aviation, aerospace and so on
Function & application
Aerospace
Military Railway
Shipbuilding ,Chemical
Mining Inspection
Pressure Vessel, Pipeline
Oilfield Power Plant
Film process mainly by developing, fixing, washing and drying. The film needs to be placed in the developer tank that with liquid for a period of time, then in the fixer tank for a period of time. After that, put it in wash tank, then dry it to complete the film process.
The four processes have high requirements for the temperature, time and liquid concentrations in developer and fixer. Film process has four modes, cold, preheating, wash, and self-inspection. Under cold mode, system is on electricity but not work. Under preheating mode ,working area starts to heat to certain temperature without film. When the film enters in, temperature goes up rapidly to wash film. Wash mode means film is under washing. Under self-inspection, it can check whether each component is working normally.
Technical Product
| Film Size | Min.60mm, Max.435mm |
| Film Speed | 6~14min (Interval is adjustable in a minute) |
| Film Qty | 8~18 piece per hour (356×432mm)，30~72 piece per hour (80×300mm) |
| Linear Speed | 65~145mm/min |
| Developer Tank Volume | 5.2L |
| Fixer Tank Volume | 5.2L |
| Washer Tank Volume | 5.2L |
| Developer Temperature | 20~40℃(adjustable) |
| Fixer Temperature | 20~40℃(adjustable) |
| Washer Temperature | 20~40℃(adjustable) |
| Dryer Temperature | 20~70℃(adjustable) |
| Water Consumption | 2L/min during processing |
| Replenishment | Automatic/Manually 50-500ml/m³ |
| Power Source | 220v 8.8A 50Hz |
| Weight | 40kg (Empty),55kg (Filled) |
| Dimension | 800mm×580mm×420mm |
‘
‘
‘
