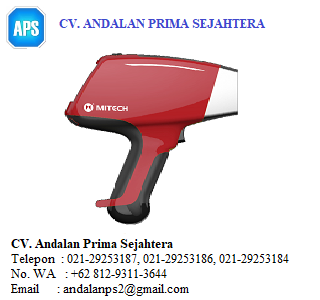

Mitech MAS800 Portable Spectrometer
Brand：Mitech
Model：MAS800
Measuring range：from Mg to U
Resolution Accuracy：
Communication storage：USB, Bluetooth, WIFI,
Working time：A single battery can last 8 hours
Main unit weight：1.6Kg（with battery）
Dimensions：254×79×280mm（L×W×H）
Package dimensions：53*23*45cm
Total weight：10kg
MITECH MAS800 Portable spectrometer, also called alloy analyzer. It adopts the principle of energy and wavelength differences in X-ray generated by metal atoms when energy level flips, so as to analysis element type and content in alloy material. Small size and light weight makes it convenient to work on site. It is easy to operate without tricky skills. A variety of elemental content can be measured at once in solid/powder/liquid sample detection. It is also designed with low consumption, high speed analysis and high accuracy; widely used in the field of analysis of elements such as boiler containers, petrochemical refining, iron and steel smelting, nonferrous metals, aerospace, weapons manufacturing and other elements that need to analyze Na or above to U. MAS 800 is a necessary professional precision instrument to improve the production efficiency and pass rate as well as cost savings.
Function & application
Boiler, container, pipeline, manufacturing and other high temperature and high pressure industry in the production process of material analysis and reliability identification (PMI);
Iron and steel smelting, nonferrous metals, aerospace, weapons manufacturing, submarine ships and other military, national key projects in the production process of metal materials identification;
Petrochemical refining, fine chemicals, pharmaceuticals, power plants, aerospace and other engineering installation and construction of metal materials to identify.
Scrap metal recycling and recycling of metal for identification, sorting;
QA / QC management of metal materials during the production, processing, manufacturing and casting and so on.
Technical Product
| Power Systems | Intelligent battery management through MSBUS bus, real-time monitoring of the residual capacity of |
| Dimentions | 254×79×280mm（L×W×H） |
| Weight | 1.6Kg（with battery） |
| Safety | Built-in Double Beam TM technology automatically senses the presence of samples in front, improving |
| Data processing | Built-in 32G memory。 USB, Bluetooth, WIFI, the device can be connected to the Internet, remote contr |
| Display system | Industrial resistive touch screen with screen size of 4.3″. Proprietary operating system software an |
| Detector | BOOST Si-PIN detector |
| Excitation source | 50KV/200uAmaximum，Pipe pressure and flow can be freely adjusted，Ag target material(standard)，Au、W、R |
| Applicable materials | For the detection of iron-based alloy series（Stainless steel, chrome / molybdenum alloy steel, low a |
| Measuring range | From Mg to U Can analyzed Ti，V，Cr，Mn，Fe，Co，Ni，Cu，Zn，Se，Zr，Nb，Mo，Rh ，Pd，Ag，Cd，Sn，Sb，Hf，Ta，W，Re，Pb，B |
‘
‘
‘
