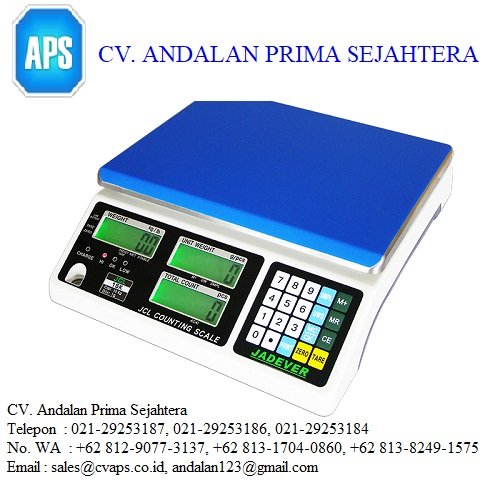

Jadever JCL-30K Electronic Weighing Scales for Coin Counting Max. Capacity 30kg
Jadever JCL-30K Electronic Weighing Scales for Coin Counting
- Brand: JADEVER
- Item NO.: JCL
- Product Origin: China
- Capacity: 3kg/6kg/15kg/30kg
- Division: 1/30000
- Power supply: AC 110V/220V(AC±10%) or rechargeable battery（6V/4A）
Features
1/30,000 resolution Inventory Check Weighing Counting Scales for packaging
Large bright LCD with green LED backlight
A/D covered by aluminum plate, prevent PCB from static and moisture.
Weighing platter easy to disassemble (with anti-cockroach design)
Overload and transport devices
Zero/tare/pre-tare/zero tracking /accumulation(99 pieces)/auto unit weight recomputing/part counting/sampling / check quantity functions
Auto shut off /auto backlight
optional RS-232 interface, Bluetooth, U-key, U-disk etc.
Ideal for applications including document distribution, shipping and receiving/inventory management/in-process parts counting/prepacking parts or any other use
Specification
| Model | JCL-
1.5K |
JCL-
3K |
JCL-
6K |
JCL-
7.5K |
JCL-
15K |
JCL-
30K |
| Capacity(kg) | 1.5 | 3 | 6 | 7.5 | 15 | 30 |
| Division(g) | 0.1/0.05 | 0.2/0.1 | 0.5/0.2 | 0.5 | 1/0.5 | 2/1 |
| Weighing units | g / lb | kg / lb | ||||
| Display | 6/5/6digits,19mm digit height, LCD display with LED backlight | |||||
| Weighing pan(mm) | 294×228 (stainless steel) | |||||
| Dimension(mm) | 341×249×104 | |||||
| Weight | Net weight4.48kg; Gross weight5.04kg | |||||
| Power supply | AC 110V/220V(AC±10%) or rechargeable battery（6V/4A） | |||||
Electronic weighing scales are measuring devices used to determine the weight of objects using electronic systems that display the results as digital values on a screen. These scales differ from mechanical scales (analog or dial scales), which use physical mechanisms to indicate weight.
Main Components of a Digital Weighing Scale:
-
Load Cell: A sensor that detects the force of an object’s weight and converts it into an electrical signal.
-
Electronic System: Processes the electrical signal from the load cell and calculates the corresponding weight.
-
LCD/LED Display: Shows the measured weight in numerical form.
-
Platform: The surface where the object to be weighed is placed.
-
Controller: Manages the entire weighing process and controls the display output.
